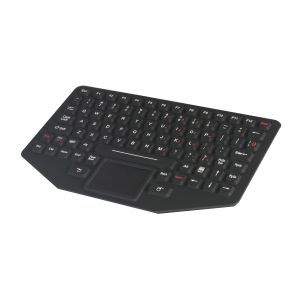

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-M275TP-FN-BL-IL-OEM

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

OEM : Yes

application : industrial / military

connection : USB, PS2

material : rubber

Housing : optional

backlight : red

Contact Now

Industrial silicone rubber rugged keyboard integrated with sealed touchpad

Main feature:

89 keys IP65 rugged silicone rubber keyboard

With sealed and tough touchpad

Industrial adjustable red color backlight with 4 level brightness

With optional stainless steel back plate

Top panel mount

With FN keys for easier operation

FN + CLEAN key to lock/disable the keyboard for easy cleaning

ELECTRICAL DATA:

Supply Voltage

+5V DC +/-5%

Current Rating

30mA (non-backlight) , 150mA (with back light on)

EMC Standard

IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004
EMI

EN55022: 2010

EMS

EN55024: 2010

Lifespan

Carbon-on-Gold key switch technology with gold PCB.

Interface

PS2, USB available

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY:

Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY:
RoHS , CE, FCC, ESD
Protection Level: IP65, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min

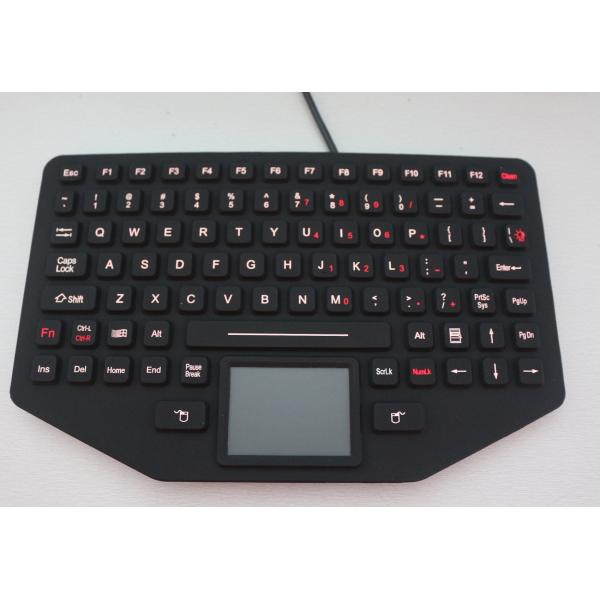

Actual Photos:

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

More View of Application:

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

Our Factory:

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2

Rubber Red Backlight 30mA Silicone Usb Keyboard USB PS2
